Liquid Handling (LiHa) disposable tips

Carefully designed, produced and validated to ensure reliable performance using Liquid Handling (LiHa) Arms and Flexible Channel (FCA) Arms on Tecan platforms.

Available in a variety of tip volumes, with or without filters, and made of conductive polypropylene to allow capacitive liquid level detection. Available in three purity levels (Tecan Standard, Tecan Pure and Tecan Sterile) tailored towards specific applications.

Click here to learn more about purity levels and supply.

Find out why it is important to use Tecan Tips on your Freedom EVO® and Fluent® instrument




***************************************************************************************
***************************************************************************************
Tab 01 / Quality and reliability
***************************************************************************************
***************************************************************************************

All-round performance you can rely on

We fully automate our liquid handling tip manufacturing within a controlled environment, using state of the art production processes and integrated quality control procedures. For instance, during production each and every LiHa disposable tip undergoes inspection, checking all functional parts, so you can rely on consistent pipetting accuracy and precision.

Discover the performance of our disposable tips

Air LiHa Arm

LiHa disposable tips for Freedom EVO equipped with Air LiHa Arm
Tip type Volume CV* Accuracy*
10  µl, without filter 0.5 µl < 6 % ± 9.5%
10  µl, without filter 1 µl < 4 % ± 7.0%
10  µl, without filter 10  µl < 1 % ± 1.5%
50  µl, without filter 1  µl < 4.0 % ± 10.0%
50  µl, without filter 50  µl < 0.5 % ± 1.0%
200 µl, without filter 100 µl < 0.5 % ± 1.0%
350 µl, without filter 3 µl < 5 % ± 7%
350 µl, without filter 350 µl < 0.5% ± 1.0%
1000 µl, without filter 100 µl < 0.5 % ± 1.0%
1000 µl, without filter 1000 µl < 0.5 % ± -1.0%

* Typical pipetting precision/accuracy defined as the worst
  value of at least three tested instruments:
- Deionized water; standard liquid class parameters
- Free dispense, single pipetting

Read More

Liquid LiHa Arm

LiHa disposable tips for Freedom EVO equipped with Liquid LiHa Arm
Tip type Volume Syringe size CV*
10  µl 1 µl 500 µl ≤ 10.0 %
10  µl 10  µl 500 µl ≤ 3.5 %
200 µl 10 µl 1000 µl ≤ 3.5 %
200 µl 25 µl 1000 µl ≤ 2.0 %
200 µl 197 µl 1000 µl ≤ 0.4 %
350  µl 25  µl 1000 µl ≤ 2.0 %
350 µl 100 µl 1000 µl ≤ 0.75 %
350 µl 350 µl 1000 µl ≤ 0.5 %
1000 µl 25 µl 1000 µl ≤ 5.0 %
1000 µl 100 µl 1000 µl ≤ 1.0 %
1000 µl 200 µl 1000 µl ≤ 0.75 %
1000 µl 500 µl 1000 µl ≤ 0.5 %
1000 µl 750 µl 1000 µl ≤ 0.5 %
1000 µl 973 µl 1000 µl ≤ 0.5 %

* Typical pipetting precision, achievable in the application:
- Deionized water; standard liquid class parameters
- Free dispense, single pipetting

Read more

Air FCA Arm

LiHa disposable tips for Fluent equipped with Air FCA
Tip type Volume CV* Accuracy*
10  µl 0.5 µl < 6 % ± 9.5%
10  µl 1 µl < 1 % ± 2%
50  µl 1  µl < 4.0 % ± 8%
50  µl 50  µl < 0.3 % ± 0.5%
200 µl 10 µl < 2 % ± 1.5%
200 µl 200 µl < 0.2 % ± 0.5%
350 µl 10 µl < 2 % ± 1.5%
350 µl 200 µl < 0.2 % ± 0.5%
1000 µl 10 µl < 1.2 % ± 3%

* Pipetting precision:
- Water
- Free dispense, single pipetting

Read More

Liquid FCA Arm

LiHa disposable tips for Fluent equipped with Liquid FCA
Tip type Volume Syringe size CV* Accuracy*
10  µl 0.5 µl 1250 µl ≤ 8 % ± 10 %
10  µl 10  µl 1250 µl ≤ 1 % ± 1 %
50 µl 1 µl 1250 µl ≤ 6 % ± 8 %
50 µl 50 µl 1250 µl ≤ 0.5 % ± 1.5 %
200 µl 10 µl 1250 µl ≤ 1.8 % ± 2.5 %
200 µl 200  µl 1250 µl ≤ 0.2 % ± 0.75 %
350 µl 10 µl 1250 µl ≤ 2.0 % ± 2.0 %
350 µl 100 µl 1250 µl ≤ 0.3 % ± 1.5 %
1000 µl 10 µl 1250 µl ≤ 2 % ± 3 %
1000 µl 1000 µl 1250 µl ≤ 0.3 % ± 0.5 %

* Pipetting precision:
- Water
- Free dispense, single pipetting

Read more




***************************************************************************************
***************************************************************************************
Tab 02 / Videos
***************************************************************************************
***************************************************************************************

Nested LiHa disposable tips for improved tip logistics

See how the Robotic Manipulator (RoMa) Arm removes an empty tip tray from a stack of nested LiHa disposable tips during an automated liquid handling workflow.

Disposable Transfer Tool for optimized nested LiHa disposable tip logistics

If you have no RoMa Arm, then watch how the disposable Transfer Tool picks up empty trays from a stack of nested LiHa disposable tips. This tool can be used with the Liquid LiHa, Air LiHa Arm and FCA.




***************************************************************************************
***************************************************************************************
Tab 03 / Literature
***************************************************************************************
***************************************************************************************

Brochures

Boost efficiency, flexibility and walkaway times with nested disposable tips.

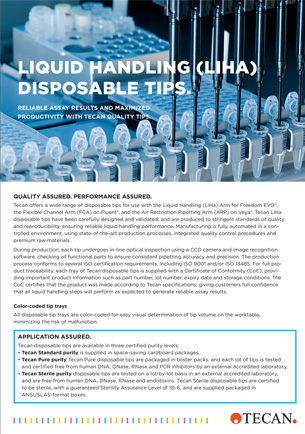

LiHa disposable tips have been carefully designed and validated, and are produced to stringent standards of quality and reproducibility, ensuring reliable liquid handling performance.

Increase throughput and walkaway times without requiring a gripper.

Clear LiHa disposable tips have been designed for use with Air LiHa™, Air FCA™ and Cavro® ADP pipetting options. Each tip is manufactured in a state-of-the-art, controlled environment, and optically inspected.

Reliable assay results and maximized productivity with Tecan’s quality consumables.

Product specifications

Available by request

Articles

The industrialization of biology has become possible thanks to the automation of repetitive tasks – such as liquid handling – making 24/7 operation feasible. This cost-saving automation addresses several major concerns for biology workflows.

Read a Tecan Journal article on how we are complementing our portfolio with our newest member of the disposable tip family.

Read how Advanced Technologies Cambridge (ATC) is using a Freedom EVO platform to perform complex pipetting tasks for PCR screening assays.
